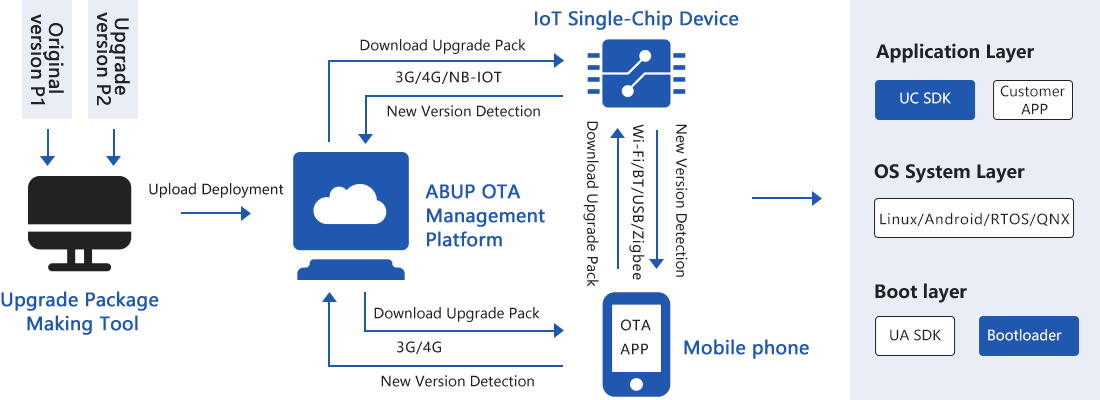

This scenario is for single chip devices of the Internet of things to upgrade directly online or indirectly access to the public network through the gateway Wi Fi / BT / USB / ZigBee.
UC SDK is integrated in the application layer, which is mainly responsible for the control of the upgrade process, providing networking, reporting, downloading, verification, storage and other interfaces to the user app call;
UA SDK is integrated in the boot layer, which is mainly responsible for restoring differential packets locally and writing them through bootloader
For Linux / Android / RTOS / QNX operating system, UA SDK needs independent recovery partition
Direct networking - bike sharing, smart watch, car machine, GPS tracker, dash cam;
Indirect networking - Smart bracelet, beacon device, ZigBee smart home, rearview mirror;

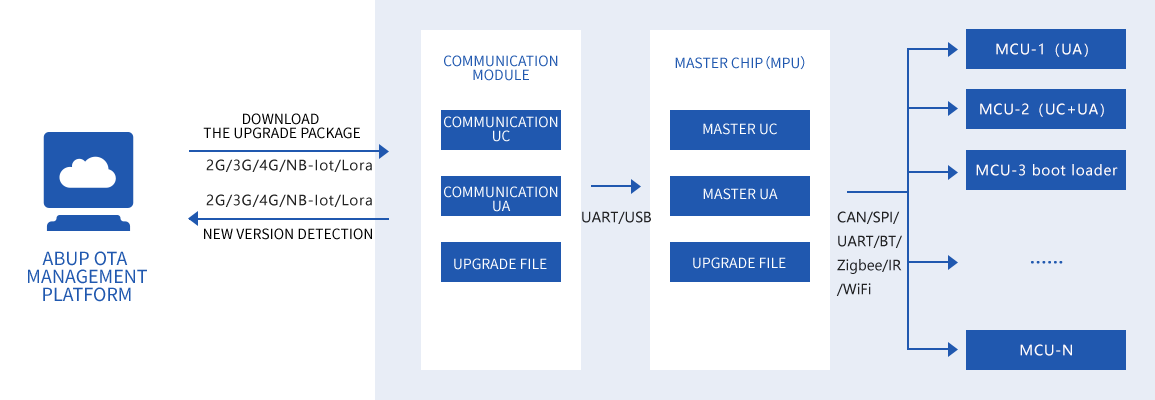

This scenario is oriented to upgrade the device system composed of multiple MCU
The main chip of the device is connected with other MCU through internal bus such as uart/spi/can
Mixed upgrade solution of multi system in device (Linux / Android / RTOS / QNX operating system)
UC SDK is integrated in the application layer, which is mainly responsible for the control of the upgrade process, providing networking, reporting, downloading, verification, storage and other interfaces to the user app call;
UA SDK is integrated in the boot layer, which is mainly responsible for restoring differential packets locally and writing them through bootloader
For linux/android/rtos/qnx operating system, UA SDK needs independent recovery partition
Upgrade of independent MCU in vehicle engine system; The robot system is connected to the Internet through the communication module, and the main CPU is connected to the independent MCU and the upgrade of different operating systems.
This scenario is for single chip devices of the Internet of things to upgrade directly online or indirectly access to the public network through Wi Fi / BT / USB / ZigBee.
save：Single upgradeflowAnd downloaddurationreduce 85%；New versionUpgrade reach ratepromote 90%；Upgrade causedBusiness interruptionReduced duration 80%，Save plug-ins Flash BOM cost；reduceUpgrade power consumption60%；
purpose：Cumulative 20万+Cycling，average3 Upgrade once a month
Version update is mainly the control program of continuous optimization lock、Optimize power consumption and network connectivity、Improve positioning effect、Unlocking time and sound effect, etc

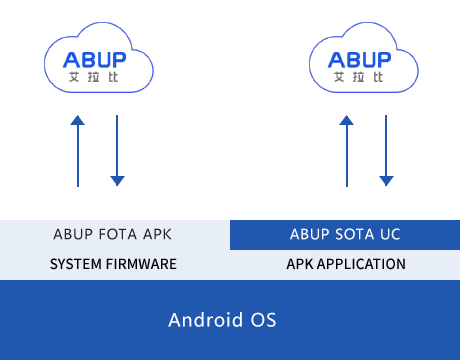

Araby offers customized FOTA APK contain UI Customization and interactive customization；
Araby SOTA UC Integrated in the system layer，Can be directed to push and upgrade the specified system APK；
save：Greatly save equipment and cloud for customersdevelopment effort，1 week FOTA and SOTA Integration verification and online；android System firmware andConsumption flowreduce 80%，Significantly reduce mobile traffic overhead and download upgradeWaiting time；
purpose：Unified management background management of the same batch of vehicles，It can be applied to the system and application at the same time APK Upgrade and fine control；
STM32 MCU和4G Linux The core modules all have built-in eirabbi FOTA Differential upgrade capability(UA)。
The storage area of STM32 differential package and module differential package upgrade package is placed in the designated area of 4G core module，STM32 MCU in DTU transmits differential packet data through SPI / serial port to realize differential write to MCU
save：Spare time FLASHstorage space，Save on upgradeflow，Risk reduction：Improve upgrade reliability；In the process of upgradingDo not erase customer data；
purpose：Realize the two-stage burning of standard DTU products, standard production, differential upgrade, different customized firmware, so as to connect to the industrial Internet platform designated by customers，Realize customized customer requirements；
STM32 MCU integrates core differential upgrade capability in BL layer(UA),Integrate and upgrade management and control program in application layer(UC),The network call is passed NB-IOT The at instruction of the module is completed。NB-IOT The module only transmits data through to realize network connection.
The firmware of door lock includes application and user data area. In the upgrade process, only the application area is upgraded, and the data area cannot be changed.
save：provinceflow，provinceFlash，provincepower waste；And combined with base stationdispatch；
Fast download speed, fast upgrade speed,High reliability；
Directional upgrade, skip the data area;
Administration：It does not depend on communication module, only needs to be compatible with at instruction set in OTA UC; The differential upgrade package connects different business management platforms;
purpose：Identification algorithm and interaction are iterated frequently, patch upgrade and system optimization are carried out;
STM32 MCU integrates the core differential upgrade capability (UA) in BL layer, the upgrade protocol program (up) based on ble communication in application layer, and the control program UC connected with cloud platform in mobile app The upgrade protocol program (up) connected with the device end and the SDK; The ble module transmits data through to realize network connection.
save：provinceflow，provinceFlash，provincepower waste；Fast download speed, fast upgrade speed and high reliability; Customers can develop and upgrade watch upgrade page in their own app; Directional upgrade, skipData area；
purpose：It does not depend on communication module, only needs to be compatible with at instruction set in OTA UC; The differential upgrade package connects different business management platforms;
It is mainly used to optimize system function, update material library, optimize algorithm, etc;
STM32 MCU integrates core differential upgrade capability (UA) in BL layer and upgrade control program (UC) in application layer, in which network call is completed by at instruction of nb-iot module.
Nb-iot module only transmits data through to realize network connection.
The firmware of door lock includes application and user data area. In the upgrade process, only the application area is upgraded, and the data area cannot be changed.
save：provinceflow，provinceFlash，provincepower waste；And combined with the base station scheduling；
Fast download speed, fast upgrade speed,High reliability；
Directional upgrade, skip the data area;
Administration：It does not depend on communication module, only needs to be compatible with at instruction set in OTA UC; The differential upgrade package connects different business management platforms;
purpose：Identification algorithm and interaction are iterated frequently, patch upgrade and system optimization are carried out;
CCO Integrated upgrade protocol control program in UP，At the bottom of the chip, the ability of differential upgrade is realized UA；The corresponding up program is established in the application layer of PCO / STA, and the differential upgrade capability UA is realized in the bottom layer of the chip; Sta can also route / relay each other;
purpose：Self discovery between nodes，FOTA service can also be realized in ad hoc network；Saving PLC chip flashSpace occupation；The FOTA end-to-end service construction of PLC communication transmission can reduce the repetition rateNumber of requests，increasetransmission efficiency；
Reduce gatewayFlow consumption，Sta node distribution and version storage are done on CCO side to improve CCO operation efficiency;
Reduce businessInterruption time，Upgradereliability；
Based on the specific optimization of PLC unstable transmission and low rate transmission,Batch upgrade maintenanceTime is greatly shortened；
